GRAVEL FRAMES

Breccia

Don’t let the Breccia’s classic design fool you – it can be built for any adventure, accommodating all the gear you want/need including fenders, big tires, and frame bags.

You can purchase a frame to build yourself, or talk to Steve the Bike Guy about a custom build.

/ˈbreCHēə/

NOUN. GEOLOGY.

A sedimentary rock made of sharp fragments embedded in fine-grained material.

Stock Color

Green Olivenite

Chemical composition: Cu2AsO4OH

The matte finish and color were inspired by olivenite, a copper arsenite mineral that often has a velvety luster when occurring as globular aggregates (round masses) of acicular (needle-shaped) crystals.

$1,299.00

Stock Color

Blue Kyanite Fade

Chemical composition: Al₂SiO₅

Like the blue sky on a beautiful day, this frame calls you to skip your chores and head out for a ride. The name and color are inspired by the aluminosilicate mineral found in aluminum-rich metamorphic pegmatites and sedimentary rock.

$1,349.00

Stock Color

PMC Special Edition

This frameset, and those who ride it, are on a mission – to raise funds for cancer research and treatment at Dana-Farber Cancer Institute through the Pan-Mass Challenge (PMC).

The distinctive color scheme and graphics are based on the eye-catching logo of PMC Unpaved, a gravel bike ride over the scenic backroads of the Berkshires in western Massachusetts.

$1,499.00
Includes $150 donation to PMC Unpaved.

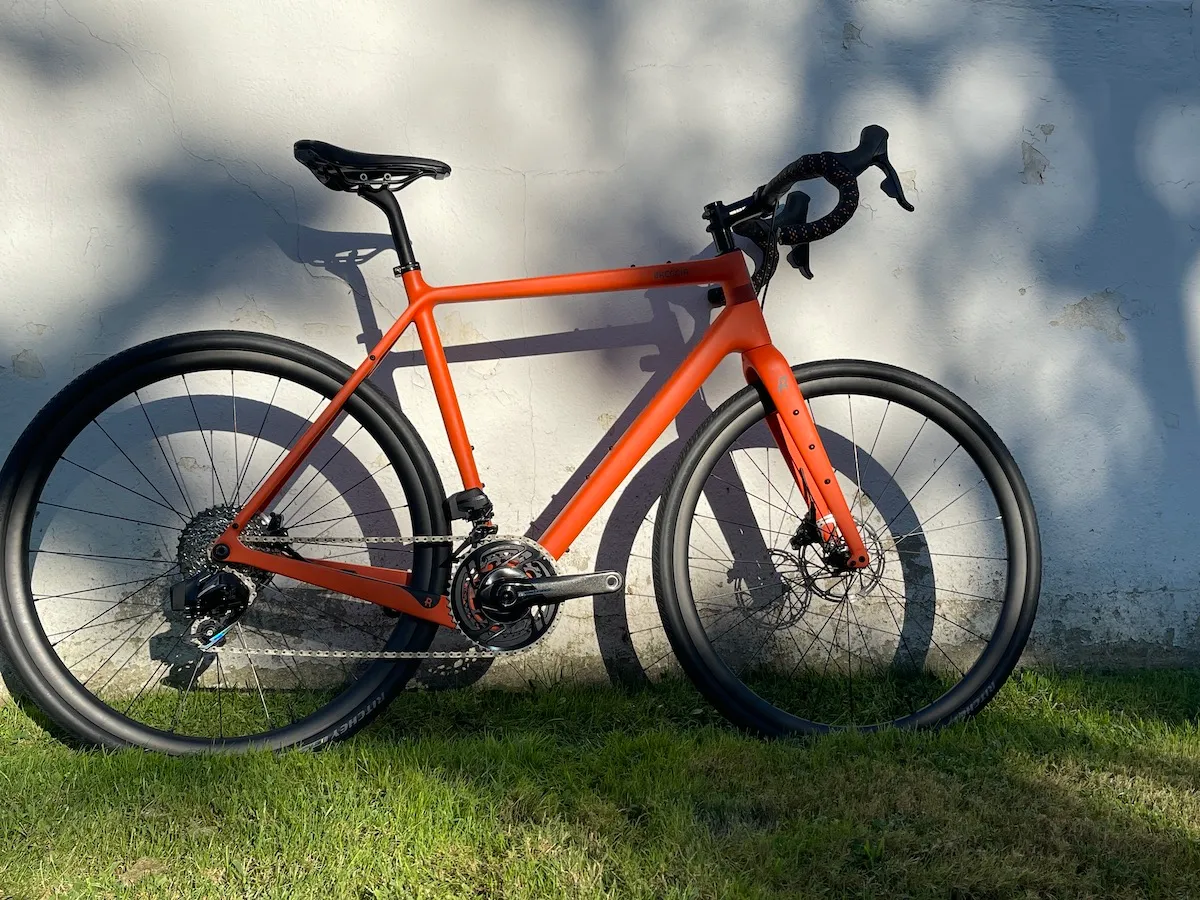

Custom Color Breccia

Looking to make a ruckus in your signature color? No problem! We can help you design a bike that is uniquely yours.

$1,450.00
Includes up to three body and logo colors.

Bike Details & Specs

Bottom Bracket:BSA 68mm
Threaded Brakes: Flat Mount Disc 140mm Rotor Native (brake calipers come with plates for 160mm)
Thru-Axles: 100×12 front / 142×12 rear.
Headset: IS42/IS52 (Compatible with gravel suspension forks)
Seatpost Diameter: 27.2mm with 31.8 clamp
Tire Size Max: 700×50 or 650bx2.1 (53mm)
Chainring Size Limits: 50-34 Double / 46T Single
Removable Front Derailleur Braze-on Mount Mechanical/Di2/AXS Compatible (2 headtube cable port options included)
Frame mounting points:
- 3 Bottle cages
- Top tube bag
- Fork leg multi-mounts (no fork mounts optional)
- Fork crown fender mount
- Rack/fender mounts on fork dropouts
- Seatstay rack mounts
- Rear Dropout rack/fender mounts
- BB bridge fender mount
- Seatstay bridge fender mount

Frameset includes

Fork
Seat clamp
Carbon seat post 27.2
Front and rear thru axles

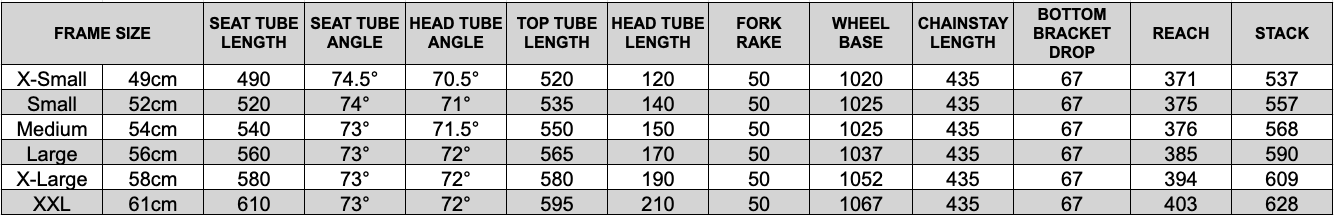

Frame Size		Seat Tube Length	Seat Tube Angle	Head Tube Angle	Top Tube Lenght	Head Tube Length	Fork Rake	Wheel Base	Chainstay Length	Bottom Bracket Drop	Reach	Stack
X-Small	49cm	490	74.5	70.5	520	120	50	1020	435	67	371	537
Small	52cm	520	74	71	535	140	50	1025	435	67	375	557
Medium	54cm	540	73	71.5	550	150	50	1025	435	67	376	568
Large	56cm	560	73	72	565	170	50	1037	435	67	385	590
X-Large	58cm	580	73	72	580	190	50	1052	435	67	394	609
XXL	61m	610	73	72	595	210	50	1067	435	67	403	628
